Carbon dioxide storage tank
Carbon dioxide exists in liquid form when the temperature is below 31 degrees Celsius or the pressure is greater than 7.35MPa. However, it begins to vaporize when the temperature exceeds 31 degrees Celsius, and the pressure also keeps changing with the variation of temperature. Taking advantage of this feature, liquid carbon dioxide is filled in the main pipe of the crack generator. The rapid excitation heating device of the crack generator is used. The liquid carbon dioxide instantly vaporizes and expands, generating high pressure. The volume expands by more than 600 to 800 times. When the pressure reaches the ultimate strength, the high-pressure gas breaks through and is released, acting on the rock mass and ore body, thereby achieving the purpose of expansion and cracking. It overcomes the shortcomings of previous explosive blasting mining, such as high destructive power and high danger in pre-cracking, providing a reliable guarantee for the safe mining and pre-cracking of mines and rocks. It can be widely applied in many industries such as mining, cement, and quarrying. Meanwhile, the rapidly released carbon dioxide gas during the cracking process of the carbon dioxide fracturing device has a cooling effect. Moreover, carbon dioxide is an inert gas, which can completely prevent related accidents caused by open flames from blasting.

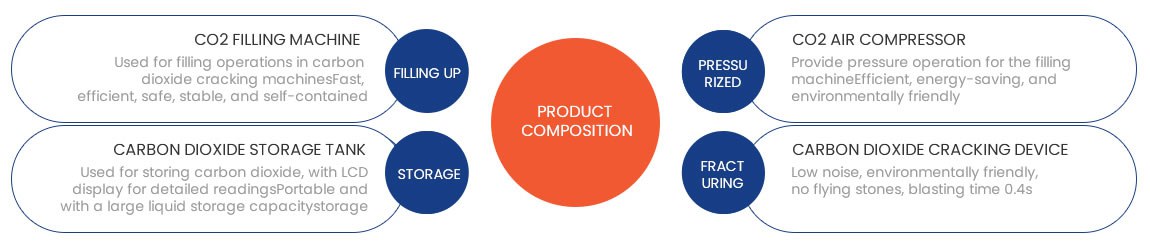

The second-generation carbon dioxide fracturing device is a new type of fracturing equipment independently developed by our company. It mainly consists of a filling machine, a liquid storage tank, a fracturing device and other equipment. Compared with the first-generation carbon dioxide fracturing device, our company's product saves more manpower, material resources and costs, and is at the leading level among domestic carbon dioxide fracturing device equipment.
Scope of application
The application scope of carbon dioxide fracturing devices is very wide. Currently, the main application scope is
① Open-pit stone quarrying
② It is the mining and tunneling of underground coal mines, especially suitable for the mining of gas coal mines
③ It is the sections and areas where the use of civil explosives for construction is not allowed
④ It is the dredging and clogging of cement plants and steel mills
Unlike traditional explosives, carbon dioxide fracturing devices do not produce shock waves, open flames, heat sources, or various toxic and harmful gases resulting from chemical reactions. Applications have proved that the carbon dioxide fracturing device, as a physical fracturing equipment, has no negative effects at all and has high safety performance.
The thermal reaction process takes place in the inner cavity of a closed tube, causing cracking at low temperatures. The CO2 ejected has the functions of suppressing explosions and flame retardancy, and will not ignite flammable gases.
It can both achieve directional cracking and delay control. Especially in special environments (such as residential areas, tunnels, subways, underground, etc.), during the implementation process, there is little vibration, no destructive vibration or shock wave, and no destructive impact on the surrounding environment.
Neither vibration nor impact can stimulate the heating device, so the filling, transportation and storage have relatively high safety. Moreover, the injection of liquid carbon dioxide only takes 1 to 3 minutes, and the cracking process is completed in just 4 milliseconds. During the implementation, there is no mute cannon and no cannon inspection is required.
There is no need for a pyrotechnic depot. It is easy to manage, operate and learn, requires few operators, and does not need professional personnel to be on duty.
The cracking ability is controllable, and the energy level is set according to different usage environments and objects.
When cracking, there is no dust or flying stones, no toxic or harmful gases are produced, the distance to avoid the blasting is short, and it can quickly return to the working face for continuous operation.
In stone mining, the texture structure is not damaged, and the yield and efficiency are relatively high.
Main model of the product
Φ89×5×1200 crack generator
Φ76×1.5×1400 crack generator
Model: CPD-ZLG-50/650/100/120, Diameter: Φ52, Φ74, Φ84, Φ90, Φ99, Φ109, Inflation Volume: Φ109 (inflation volume can reach 8Kg), Expansion pressure: 270MPa.
Φ32×1000活化劑
Fully automatic gas expansion filling machine
Filling medium: Liquid CO?, 8-pole 4-kilowatt motor, weight 450kg, dimensions: 1250mm×590mm×1150mm.
Carbon dioxide storage tank
Filling medium: Liquid CO?, capacity: 499L, Weight: 499kg, Dimensions: 2100mm×750mm×100mm
The first section of the second phase of the Yunyang South Expressway Project
On-site photos of carbon dioxide gas fracturing, carbon dioxide gas fracturing equipment, gas blasting, and mining operations
Real photos of carbon dioxide gas-induced cracking and gas blasting sites
The scene of a 20 million square meter construction site in Bishan District, Chongqing City, where carbon dioxide gas caused cracking
The Yadea Electric Vehicle Leveling Project in Fenghuang Lake Park, Yongchuan District, Chongqing City
The renovation project of Jiuding Park in Nanchuan District, Chongqing City
The first section of the second phase of the Yunyang South Expressway Project
The construction site of the Wansheng Guangsha Bay Waste Yard
Case of carbon dioxide gas expansion construction at Shuijiang Jixin Construction Site
Carbon dioxide gas expansion construction of Xiushan County Fuxing Sand and Gravel Co., LTD
